No.

Technical Data

1

Rated voltage………………………………………………………………………………...5kV

2

Rated current……………………………………………………………………………….200A

3

Power frequency withstand voltage to phase 1min (50Hz)………………………………...32kV

4

Power frequency withstand voltage to earth 1min (50Hz)………………………………....32kV

5

Insulance to phase…………………………………………………………………......>1000MΩ

6

Insulance to earth……………………………………………………………………...>1000MΩ

7

Clearance to phase………………………………………………………………..……≧100mm

8

Clearance to earth…………………………………………………………………..….≧100mm

9

Protection class……………………………………………………………………...……….IP53

10

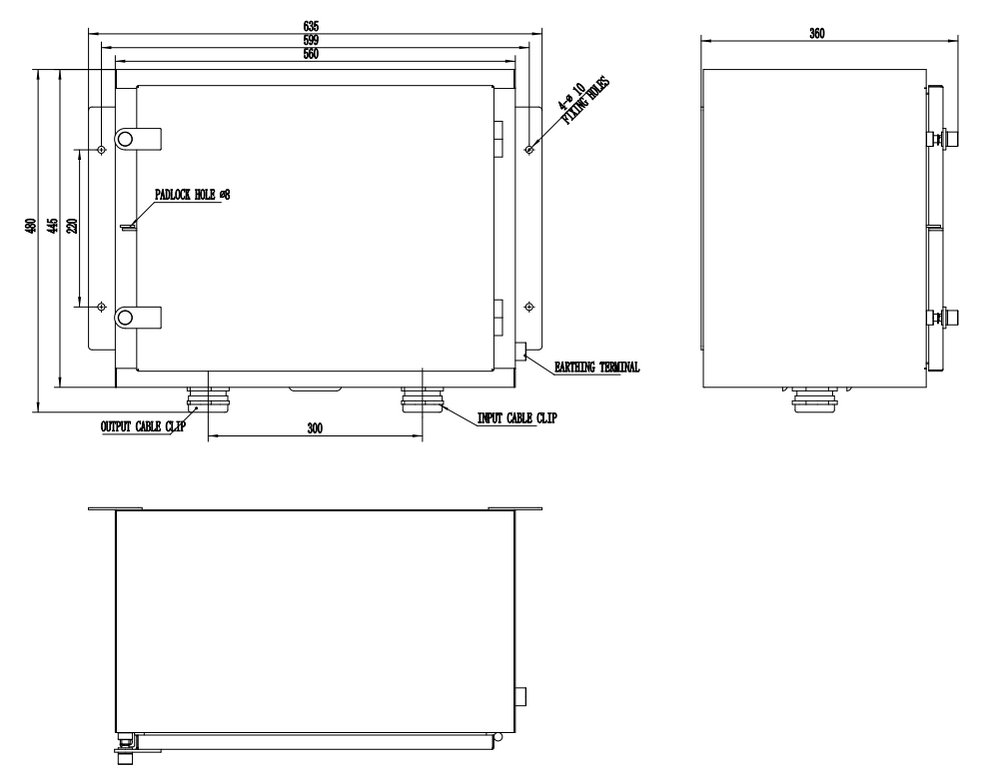

Dimension…………………………………………………...……W635mm H445mm D355mm
