VCS vacuum contactor ( Vacuum Interrupter by ABB )


Indoor High Voltage Vacuum Contactor
Rated Voltage up to 12kV Rated Current up to 630A

Features:
 Designed for Safety
 High Reliability Supported by Technologies
 Compact and Lightweight



vcs7/vcs12 Vacuum Contactor

         Technical Data

Name

Unit

Value

Main circuit

Rated working voltage (Ue)

kV

7.2

12

Rated working current (Ie)

A

630

Rated frequency (fr)

Hz

50~60

Rated making capacity

A

10Ie (AC-4)

Rated breaking capacity

A

8Ie (AC-4)

Rated short time withstand current

A

10Ie

Rated peak withstand current

A

25Ie

Rated short circuit duration

s

4

Power frequency withstand voltage

Between phases, phase to earth

kV

32

42

Vacuum breaks

kV

32

42

Lightening impulse withstand voltage

kV

60

75

Control circuit

Rated voltage1 (Us)

V

AC or DC. 110/220

Rated power (Ps)

Electric holding

VA

≤1000/100 (absorbing/holding)

Mechanical holding

VA

≤900/600 (closing/opening)

Auxiliary circuit

Form



3a+3b

Rated value



AC380V/5A, DC380V/1A

Control circuit, auxiliary circuit to earth power frequency withstand voltage

kV

2

Rated operating frequency

Long-term or mechanical holding type

time/h

300

Short-term

time/h

600

Mechanical endurance

10000 times

100

Electrical endurance

10000 times

25(AC-3),10(AC-4)

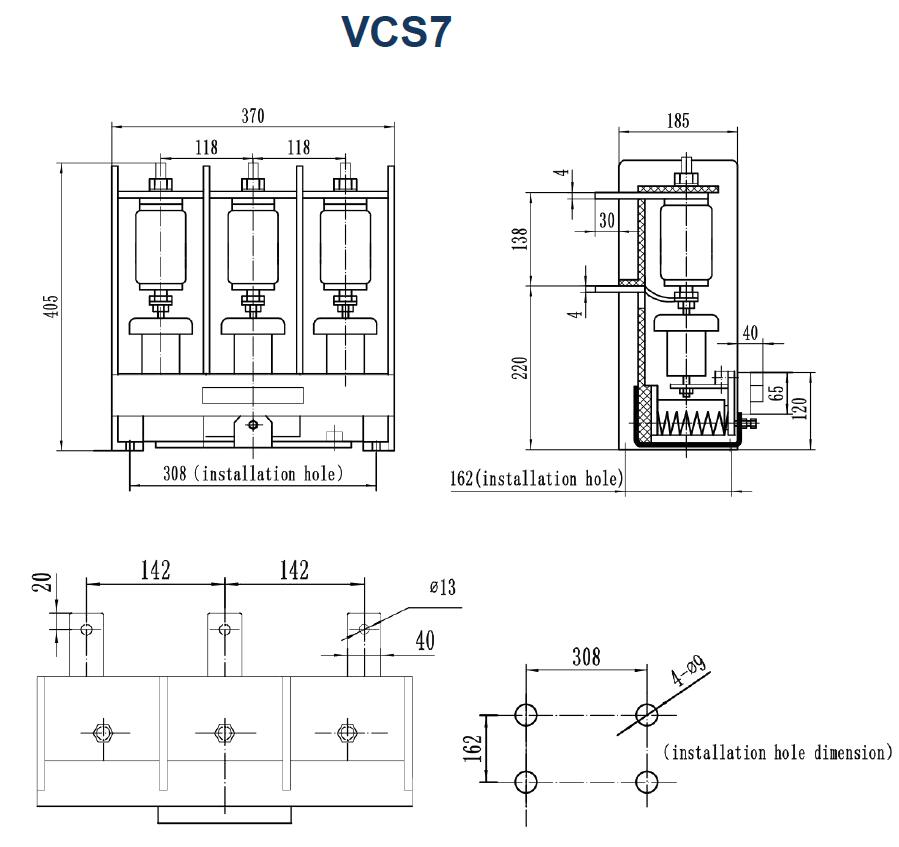

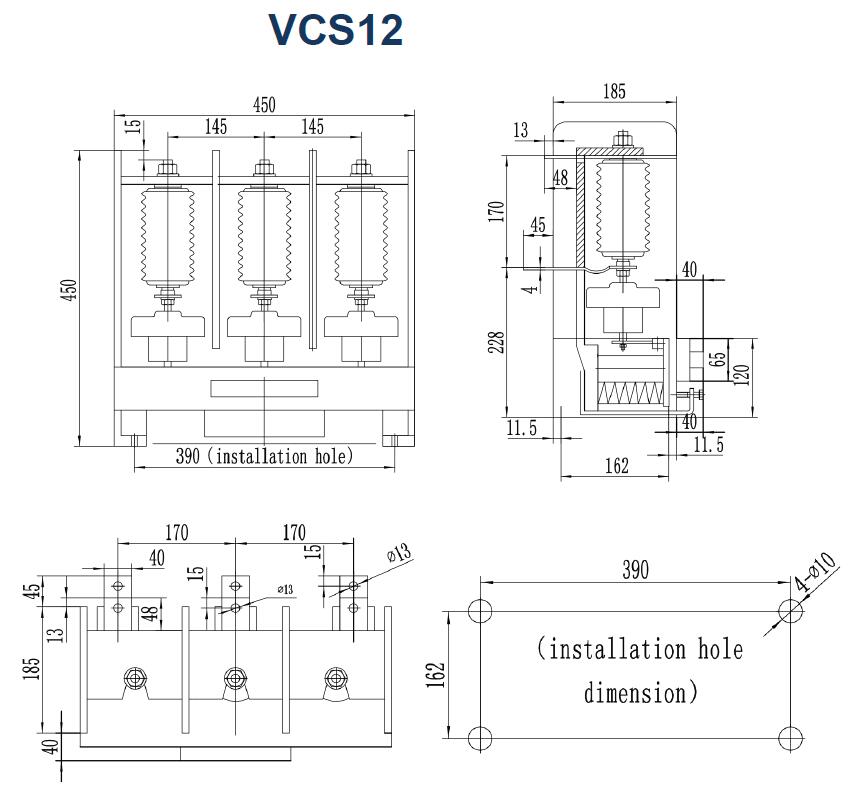

         Drawing
